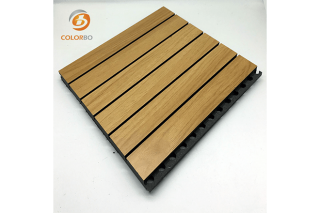

G8-T3/5
Share This Product:
  • Introduction
  • Color Chart

Specification

G8-T3/5

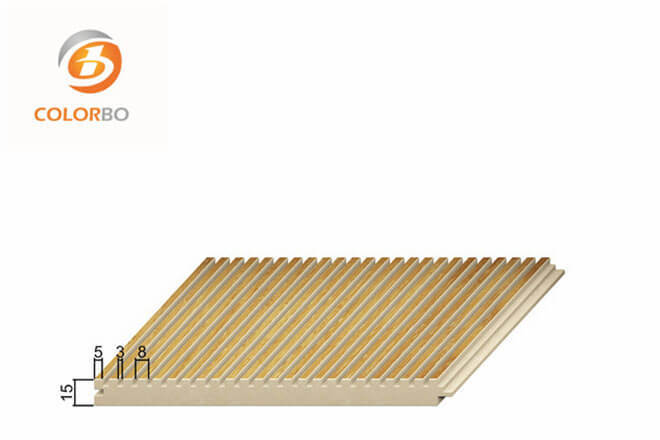

Groove 3mm, Center to Center 8mm

Surface

Melamine / Woode Veneer / Painting / Fire resistance panel

Core

1,MDF core, low formaldehyde with E1 standard

2,ECO core, which is low formaldehyde with E0 standard.

3,MGO core, which is high fire resistance level with A standard.

4,any required core materials could be replaced.

Back

Soundtex acoustic felt attached on the back of the panels.

Noise Reduction
Coefficient

0.7

Fireproof grade

GB8624 2012 A / B1

Eco-protection grade

E0 / E1

Installation

aluminum keel and clips, wood frame, gun nail

Certification

BV,CE,SGS,ISO9001-2008

Test report

Eco protction, sound absorption, flame retardant



Model Type

Specification

NRC

Punching Rate

G8

M-T-2/6-8-15

0.9

2.5%

G10

M-T-2/8-10-15

0.9

2%

G16

M-T-2/14-16-15

0.9

1.3%

G8

M-T-3/5-8-15

0.9

2.5%

G16

M-T-3/13-16-15

0.9

2%

G32

M-T-3/29-32-15

0.8

0.93%

G32

M-T-4/28-32-15

0.8

1.24%


Natural Veneer Color Chart

Melamine Color Chart
